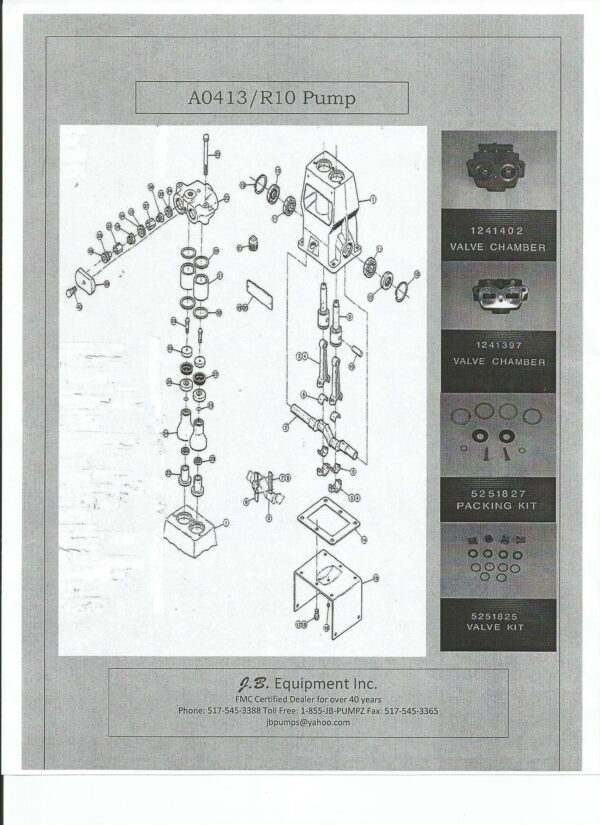

R10 (1244299) / A0413 (P559424) Pump Parts

Price range: $1.00 through $740.00

R10 1244299/ 1270230 A0413 Pump
2 Piston Pump
Rated Up To 9 GMP @ 550 PSI

Quantity	SKU	Ref No	Product Name	Price
1241364 Ceramic Cylinder quantity	1241364	31	1241364 Ceramic Cylinder	$82.88
1241397 Valve Chamber (Bare) quantity	1241397	32	1241397 Valve Chamber (Bare)	$217.04
1241402 Valve Chamber Assembly quantity	1241402	32.1	1241402 Valve Chamber Assembly	$301.65
Back Cover (long base) quantity	1255297 (A0413-R10)	15	Back Cover (long base)	$86.92
Back Cover (short base quantity	1270922 (A0413-R10)	15.1	Back Cover (short base	$80.50
Ball bearing quantity	1177804	11	Ball bearing	$72.31
Base gasket quantity	1219606	14	Base gasket	$5.76
Bearing insert, pair quantity	1280908	5	Bearing insert, pair	$52.09
Cap screw quantity	1284516	29	Cap screw	$3.49
Clamp valve cover quantity	1255887	39	Clamp valve cover	$31.08
Connecting rod quantity	1263906	3	Connecting rod	$144.73
Crankshaft quantity	1244980	2	Crankshaft	$361.77
Crankshaft (long base) quantity	1275026 (A0413-R10)	2.1	Crankshaft (long base)	Original price was: $762.20.Current price is: $740.00.
Crosshead quantity	1216823	9	Crosshead	$47.66
Cylinder gasket quantity	A91684	30	Cylinder gasket	$2.49
O'ring quantity	1101339	25	O'ring	$1.24
O'ring quantity	3264075	35	O'ring	$1.03
Oil seal quantity	1219669	12	Oil seal	$25.17
Oil slinger kit quantity	1280807	6	Oil slinger kit	$20.82
Packing holder quantity	1282557	26	Packing holder	$20.20
Packing washer quantity	5257218	28	Packing washer	$32.84
Piston Packing Cup quantity	1251925	27	Piston Packing Cup	$15.85
Pump Case quantity	1267611 (A0413-R10)	1	Pump Case	$488.68
Retainer ring quantity	1113528	13	Retainer ring	$3.63
Screw quantity	1278439	4	Screw	$1.24
Screw quantity	1187413 (A0413-R10)	20	Screw	$1.00
Sleeve quantity	1218743	22	Sleeve	$1.24
Spring washer quantity	1177455	18	Spring washer	$1.13
Umbrella quantity	1279148	24	Umbrella	$2.94
Umbrella washer quantity	1269388	23	Umbrella washer	$13.05
Valve cage quantity	1219610	37	Valve cage	$10.88
Valve cover quantity	1219614	38	Valve cover	$9.53
Valve disc & spring assembly quantity	5253499	36	Valve disc & spring assembly	$13.57
Valve seat quantity	1219615	34	Valve seat	$9.53
Wrist pin quantity	1219650	10	Wrist pin	$15.64
